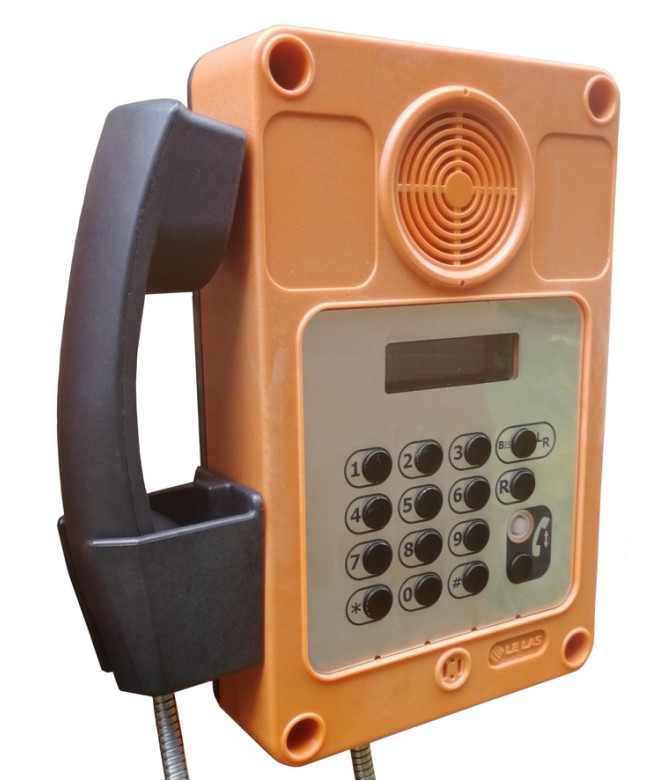

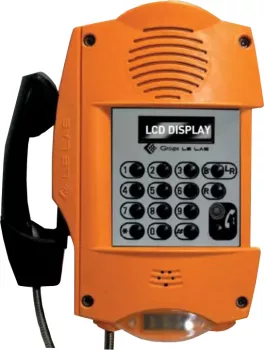

Industrie Wandtelefon IP66 Wasserdicht

Line voltage:         12 à 60 Vcc
Power consumption:     45mA ±3
Ringing voltage:     30 – 90 Vac
Numbering :         DTMF / decimal
Flashing/Terre :     ajustable
Audible call signal:     > 85 dB / 1 m.
Visual call signal:     option
Combined switching:     magnetic
Conversation mode:     hands free / Handset

Body material:            polycarbonate compound
Color:                Orange Ral2003 cover / Black Ral9005 bowl
Handset material / Color:    polycarbonate compound / Black
Handset Cord:            stainless steel 100Kg resistance
Loudspeaker:            weatherproof loudspraker vandal resistant
Mounting:            on wall 2 or 4 points
Termination:            inside screw connections
Cable Type:            multiple or single wire with a max section 1.5mm²
Cable Entry:            for cable Ø6 to Ø12mm
Dimensions:            242 X 290 X 105 mm
Weight:                2.3 kg
IP-rating:            IP66/IK08
Ambient temperature usage:    -40°C ~ +60°C
MTBF:                > 200 000 Hrs (Mean time between failures)
MTTR:                20mn (Mean Time To Repair)


Installation and maintenance procedure:

Open and close the cover over the seal using 4 stainless steel captive screws.
Fix the station at 2 or 4 points on a flat surface, max. Ø6 screws, sealing plug must be fitted.
Fit and adapt the cable diameters to the cable gland diameters and tighten them correctly.
Telephone line connection via plug-in connector for single or multi-strand wires with a maximum cross-section of 1.5 mm²

Der Artikel wird auftragsbezogen bestellt. Rückgabe und Umtausch ausgeschlossen.
